Strength Test

Strength testing is mainly used to measure wire bonding strength, component bonding strength, solder joint pull-out and shear strength, evaluate strength distribution or determine whether the strength meets relevant requirements. MTT can provide professional testing services, quickly respond to customer needs, and provide one-stop efficient testing services.

Strength Test

| Project Overview

Strength testing items include: micro-solder joint shear force testing; fine wire bond pull testing; solder ball shear/pull-off testing; and thrust testing of SMT soldered components. Measurement range: 00–500 KG, with testing accuracy of ±0.25%.

| Test Objective

Measurement of bond wire strength, component adhesion strength, and solder joint pull-off and shear strength, with evaluation of strength distribution or verification of compliance with relevant requirements.

| Testing Standards

GJB 4027B-2021 ；GJB 548C-2021；GJB 128B-2021；MIL STD883, ASTM F1269, JEDEC JESD 22-B116, JEDEC JESD 22-B117, JEITA EIAJ ET-7407.

| Service Products / Fields

Widely applied in chip packaging process testing, PCBA electronic assembly testing, automotive electronics, aerospace, defense industry, and product failure reliability testing during service.

| Project Advantages

1. Broad applicability, with different testing modules configurable to meet diverse testing requirements.

2. Rapid testing actions, stable machine operation, and high testing accuracy.

3. Equipped with a computer for real-time display of tensile curves.

4. The left and right joystick controllers can swing freely, making operation simple and convenient.

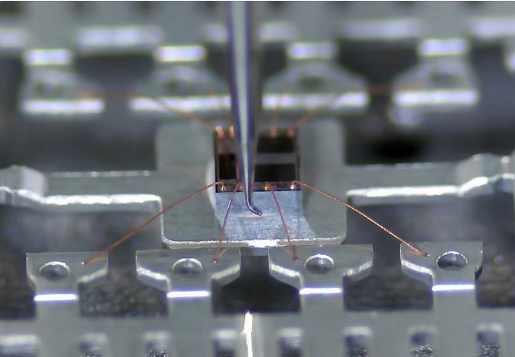

| Test Principle Diagram

| Test Analysis Diagram

| MTT Advantages

1. Professional Team: Equipped with a number of highly experienced testing engineers and technical experts.

2. Advanced Equipment: Equipped with internationally leading testing instruments to ensure accuracy and reliability of results.

3. Efficient Service: Rapidly respond to customer needs and provide one-stop, high-efficiency inspection services.

4. Authoritative Certification: The laboratory is certified by ISO/IEC 17025, ensuring that test reports have international credibility.
