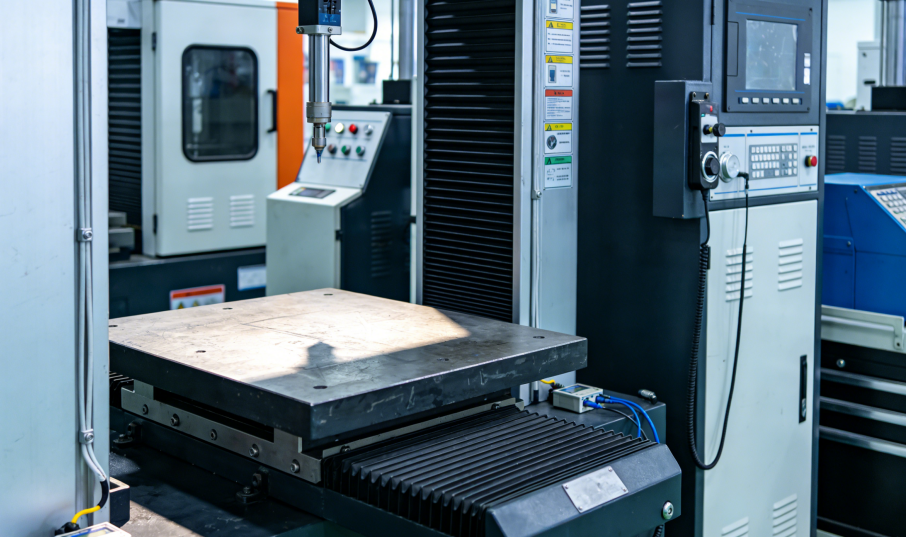

Reliability and durability test

Test Background

The liquid-cooled pump needs to run continuously for a long time. Bearing wear, seal aging, and reduction of motor insulation are the main failure modes. Reliability verification is the key to ensuring the stable operation of the system throughout its service life.

Test Introduction

Through vibration and noise testing, continuous operation life testing, MTBF verification, dry-running protection and main-standby switching testing, simulate the reliability performance of the liquid-cooled pump under long-term operation and fault modes.

Testing Objectives

Verify the vibration and noise levels under rated operating conditions

Evaluate the continuous operation life and performance degradation

Ensure the reliability of the dry-running protection function

Verify the automatic switching ability of the main and standby pumps

Test Standards

GB/T 29531 Measurement and evaluation of pump vibration

GB/T 29529 Measurement and evaluation of pump noise

GB/T 37079 Equipment reliability test

T/CESA 1249.3-2023 Reliability requirements

Applicable Products/Fields

Suitable for pump products that need to run for a long time, such as CDU main pumps, standby pumps, variable-frequency pumps, and fixed-frequency pumps.

Test Content

Vibration and noise test: Vibration amplitude and sound pressure level under rated conditions

Continuous operation life test: 1000-5000 hours of continuous operation

Dry-running protection test: Automatic shutdown in the absence of water

Main-standby switching test: Automatic switching of the standby pump when the main pump fails

MTBF verification: Statistical analysis of fault data

Project Advantages

Capable of simulating various fault modes and stress conditions

Real-time monitoring of performance degradation trends

Provides MTBF estimation and maintenance recommendations

Laboratory Configuration

Long-term operation monitoring platform

Vibration tester

Sound level meter

Fault simulation injection device

Data acquisition and statistical analysis system

FAQ
Q: Which is more suitable for the liquid cooling system, a magnetic pump or a canned pump? A: Both are leak-free pumps. The magnetic pump has slightly higher efficiency, while the canned pump has higher reliability. The choice should be based on specific applications.
